Designed to deliver quality, efficiency, and ruggedness, TOMAR's 50" 970 Series NFPA LED Brow Light meets NFPA requirements. This flood/spot LED light bars has the ability to illuminate a scene or the road effectively.

Potential Applications

• Type 3 Wildland Fire Trucks
• Type 6 Wildland Fire Trucks
• Ambulances
• Other emergency response vehicles

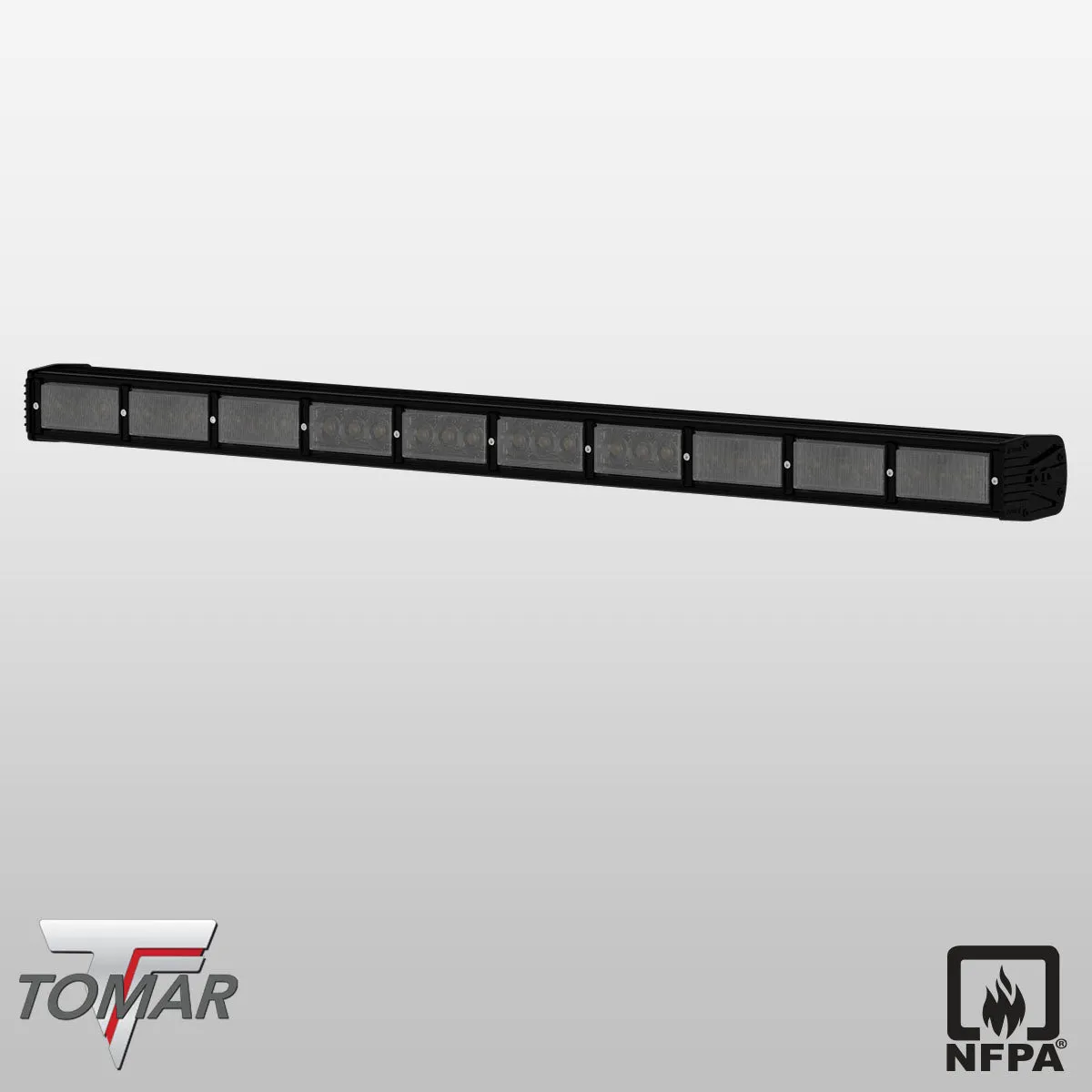

50" 970 Series NFPA LED Brow Light Configuration

• Number of Modules: 10 (6 Flood and 4 Spot Modules)

• Number of LEDs: 24

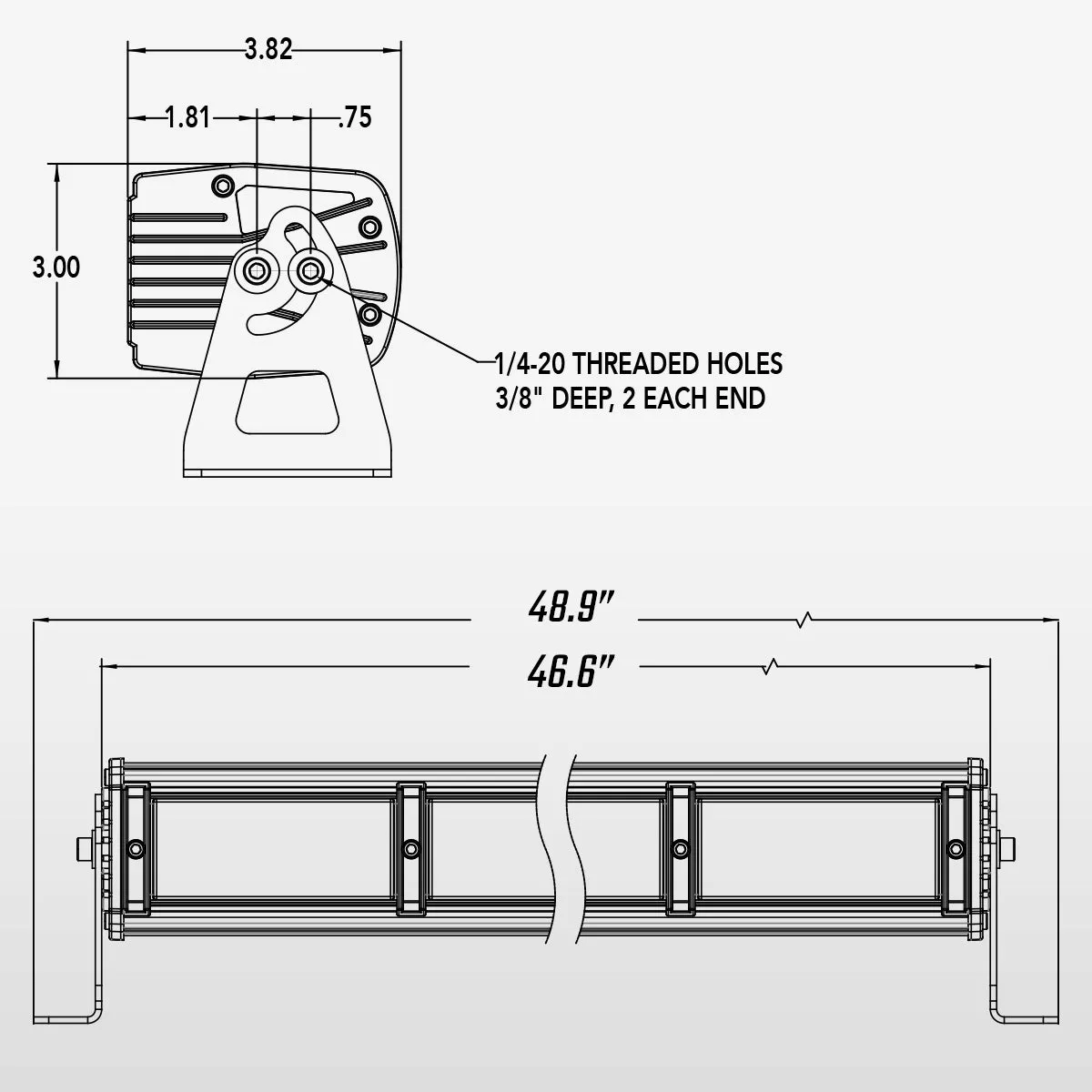

• Nominal length (in.): 50"
• Length with housing (in.): 45.6"
• Length with supplied brackets (in.): 48.9"
• Watts: 289.8
• AMPS: 21
• Waterproof - IP68 and IP69K rate, immersion tested up to 3 meters
• Operating temperature: -40°C to 60°C

KEY FEATURES

• Meets NFPA requirements
• SAE-J575 Vibration Tested
• Features 6 modular field-interchangeable led light modules (6 flood and 2 spot)

• Clear Vision Optics meet SAE-J595 for directional flashing optical warning devices
• Low current switching eliminates the need for relays
• Dimming capability
• Field-interchangeable lamp modules for customizable beam spread
• Individual activation of required running lights on properly configured models
• SOS distress flash pattern
• Operating temperature: -40°C to 60°C
• Heavy-duty 6063-T5 Aluminum Heatsink for maximum intensity over long periods
• Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
